Kocioł na pellet BioPellKompakt - 12 kW, 16 kW, 20 kW, 24 kW -

Home page > Products > Pellet boilers > BioPellKompakt

Hot water

Heating

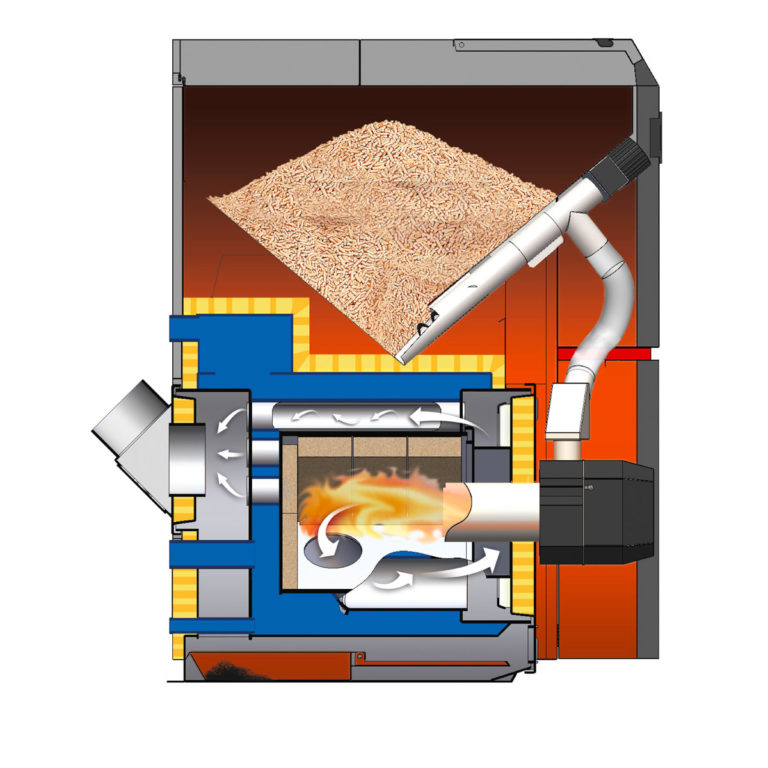

BioPellKompakt is a heating boiler containing a tubular heat exchanger based on a three-pass design adapted to burn pellets.

The boiler body is made entirely of boiler sheet metal. The advantage of the boiler is the placement of the pellet container above the heating exchanger, which allows for a reduction in the boiler’s dimensions and allows for installation even in the smallest boiler rooms.

Thanks to the tubular exchanger in the boiler, we obtain smokeless combustion and high efficiency. The boiler is equipped with a KIPI burner, the combustion chamber of which, by rotating, cleans the furnace of the resulting slag and ash, thanks to which the burner works efficiently all the time without a drop in power and does not get clogged.

The boiler is characterized by maintenance-free operation and the possibility of cleaning through a large front door. Advanced automation supports three pumps independently and the fuel ignition system, thanks to which the boiler service is reduced to the necessary minimum.

Ask for a product

Equipment

Standard

Pellet burner with rotating combustion chamber
Two ceramic igniters
Blower fan
K702 controller (control of three pumps independently, cooperation with room regulators, control of the mixing valve)

Optional

K902 controller (control of up to six pumps independently, control of mixing valves, built-in Wi-Fi module)

Automatic ignition and extinguishing

Innovative system for cleaning the furnace from the slag

Modern design and small dimensions of the boiler

Additional igniter

Class 5 certificate and eco design (ecodesign)

12 16 20 24

BioPellKompakt

Dust emission up to 20 mg/m³

YES

Boiler heating surface

1,2 m²

1,6 m²

2,0 m²

2,4 m²

Nominal thermal power

12 kW

16 kW

20 kW

24 kW

Thermal efficiency – minimum/nominal power

91,47/ 92,38%

91,85/ 92,20%

91,05/ 92,31%

91,66/ 91,83%

Max. boiler water temp.

95°C

Maximum allowable boiler pressure

0,2 Mpa

Required chimney draft

0,13 mbar

0,15 mbar

0,18 mbar

0,10- 0,25 mbar

Cross-section of the chimney opening

16 ⌀

Hopper capacity

200 dm³

Water capacity in the boiler

100 dm³

110 dm³

140 dm³

Estimated building area to be heated

do 110 m²

do 160 m²

do 200 m²

do 240 m²

Boiler power supply

230/50 V/Hz

Fan power

140-180 W

Driver power

4 W

Primary fuel

Wood pellets

Burner type

Kipi

Due to continuous modernization, KOŁTON reserves the right to introduce changes to the technical parameters, equipment and specifications of the goods offered without prior notice. The content on the website is illustrative and may vary depending on the size and equipment of the central heating boiler. Sketches, photos and cross-sections reflect the appearance of the central heating boiler.

A – Flue diameter

B – Height from bottom to bottom of flue

C – Total length

E – Total width

G – Height

I – Inlet sleeve

J – Return sleeve

12 16 20 24

BioPellKompakt

A – Diameter of the flue

16 ⌀

B – Height from bottom to bottom of the flue

54 cm

I – Power supply sleeve

74,3 cm

J – Sleeve back

25 cm

C – Total length

124 cm

139 cm

E – Total width

66 cm

G – Height

141 cm

Weight

385 kg

400 kg

440 kg

460 kg
